• 21ER-10024 21ER10024 Harness-HYD HYUNDAI Excavator Electric Parts Fit For R200W3​

• Specifiion

egory	Excavator Electric Parts
Name	HARNESS-HYD
Parts No	21ER-10024 21ER10024
Machine Model	R200W3
Lead time	1-3 DAYS
Quality	Brand new, OEM quality
MOQ	1 PCS
Means of transport	By sea/air, DHL FEDEX UPS TNT EMS
Packing	As request or standard packing

• Compatible models

3 SERIES WHEEL EXCAVATOR R200W3 Hyundai

• More other harness-HYD fit for HYUNDAI machine

21EK-20200 HARNESS-REAR COMBI

HL720-3, HL720-3C, HL730-7, HL730-7A, HL730-9, HL730-9A, HL730-9S, HL730-9SB, HL7303, HL7303C, HL730TM-9, HL730TM-9A, HL730TM3, HL730TM3C, HL730TM7, HL730TM7A, HL740-3, HL740-7, HL740-7A, HL740-7S

21EA-00190 HARNESS-EXT,START RY

H80, HL730-7, HL730TM7, HL740-7, HL740TM-7, HL757-7, HL757TM7, HL760-7, HL770-7, HX330L, R1200-9, R130W3, R140LC-7, R140W7, R170W3, R180LC3, R200NLC3, R200W3, R300LC9S, R305LC7, R320LC7, R320LC7A

21EK-20250 HARNESS-N/PLATE LAMP

HL720-3, HL720-3C, HL7303, HL7303C, HL730TM3, HL730TM3C, HL740-3, HL740-3ATM, HL740TM-3, HL740TM-3A, HL750, HL750-3, HL750TM3, HL760-3, HL760-3ATM, HL770, HL770-3, HL770-3ATM, HL780-3, HL7803A

AM83303700-2 HARNESS-JUMP WIRE

33HDLL, R130W3, R160LC3, R170W3, R180LC3, R200NLC3, R200W3, R210LC3, R210LC3H, R210LC3LL, R250LC3, R290LC3, R290LC3H, R320LC3, R360LC3, R360LC3H, R450LC3A

21EA-60731 HARNESS-WIRE SWITCH

R130W3, R170W3, R200W3, R95W3

21EK-50010 HARNESS(1)-CAB

33HDLL, 42HDLL, R130LC3, R170W3, R180LC3, R200NLC3, R200W3, R210LC3, R210LC3H, R210LC3LL, R290LC3, R290LC3H, R290LC3LL, R320LC3, R360LC3, R360LC3H, R450LC3, R450LC3A

24L3-10420 HARNESS-REAR COMBI

HL740-3, HL740TM-3, HL750-3, HL750TM3, HL760-3, HL760-3ATM, HL770-3, HL770-3ATM, R200W3

21ER-10012 HARNESS-FRAME

R200W3

21ER-10013 HARNESS-FRAME

R200W3

21ER-10014 HARNESS-FRAME

R200W3

21EM-30190 HARNESS-BOOM

R200W3, R210LC3H, R250LC3, R290LC3H

21ER-10002 HARNESS-MAIN

R200W3

21ER-10023 HARNESS-HYD

R200W3

21ER-10022 HARNESS-HYD

R200W3

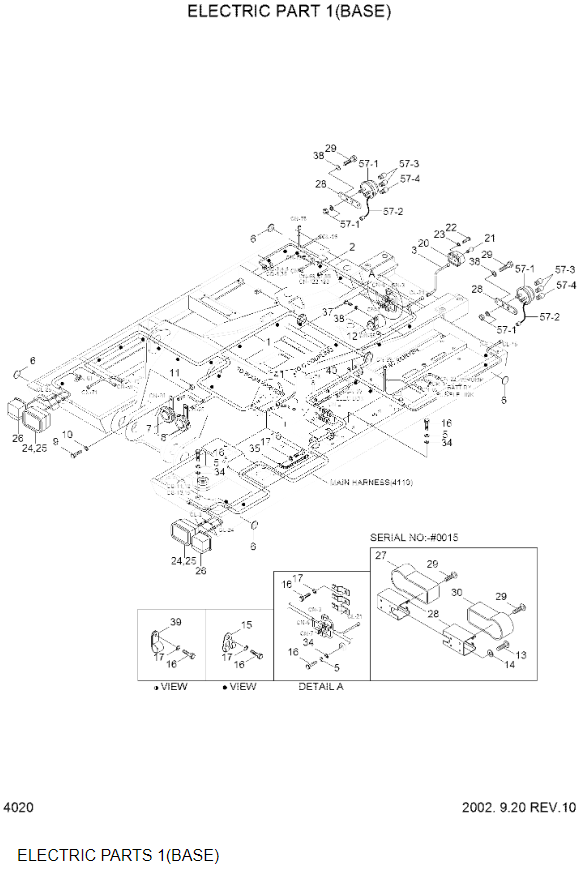

• alog parts list

Pos.	Part No	Qty	Parts name	Comments
1	21ER-10012	[1]	HARNESS-FRAME
1	21ER-10013	[1]	HARNESS-FRAME
1	21ER-10014	[1]	HARNESS-FRAME
1	21ER-10015	[1]	HARNESS-FRAME
1	21ER-10016	[1]	HARNESS-FRAME
1-1.	21ER-20010	[1]	COVER & DECAL-F/BOX	NOT SHOWN
2	21ER-10022	[1]	HARNESS-HYD
2	21ER-10023	[1]	HARNESS-HYD
2	21ER-10024	[1]	HARNESS-HYD
3	21EK-20250	[1]	HARNESS-N/PLATE LAMP
3	21N4-11040	[1]	HARNESS-EXT
5	S403-102006	[4]	WASHER-PLAIN
6	21EK-10150	[4]	REFLECTOR-SIDE
7	21EA-60521	[1]	HORN-LOW
8	21EA-60531	[1]	HORN-HIGH
9	S015-080166	[2]	BOLT-HEX
10	S403-082006	[2]	WASHER-PLAIN
11	S205-081006	[2]	NUT-HEX
12	21E4-2003	[1]	BUZZER-TRAVEL ALARM
13	S161-050166	[8]	SCREW
14	S403-052006	[8]	WASHER-PLAIN
15	21E9-00170	[29]	CLIP-HARNESS
16	S017-100166	[31]	BOLT-HEX
17	S403-102006	[31]	WASHER-PLAIN
20	21EK-10160	[1]	LAMP-NUMBER PLATE
21	21EK-10260	[1]	BULB
22	S161-040166	[2]	SCREW
23	S403-042006	[2]	WASHER-PLAIN
24	21EK-10120	[2]	LAMP-HEAD
25	21EK-10130	[2]	BULB
26	21EK-10350	[2]	LAMP-FLASHER POSITION
26-1.	21EK-10290	[1]	BULB	NOT SHOWN
26-2.	21EK-10280	[1]	BULB	NOT SHOWN
27	21EA-30460	[1]	LAMP ASSY-COMB,RR,RH
27-1.	S861-172100	[2]	BULB(21W)	NOT SHOWN
27-2.	S863-172105	[1]	BULB(21/5W)	NOT SHOWN
28	21EA-30380	[2]	BRACKET-COMBI LAMP
28	21EK-50060	[2]	BRACKET-COMBI LAMP
29	S161-050252	[8]	SCREW
29	S015-060202	[4]	BOLT-HEX
30	21EA-30450	[1]	LAMP ASSY-COMB,RR,LH
30-1.	S861-172100	[2]	BULB(21W)	NOT SHOWN
30-2.	S863-172105	[1]	BULB(21/5W)	NOT SHOWN
34	S431-100002	[4]	WASHER-INTERNAL T/LOCK
35	24L1-30720	[1]	STRAP-EARTH
37	S015-060166	[2]	BOLT-HEX
38	S411-060006	[2]	WASHER-SPRING
38	S411-060006	[6]	WASHER-SPRING
39	S543-260002	[2]	CLAMP-TUBE
40	21ER-10050	[1]	HARNESS-EXT	2PCS BOOM
41	21E9-20200	[1]	HARNESS-EXT	Q/COUPLING
57	21EK-10410	[2]	LAMP-TAIL STOP FLASHER
57	24L3-10410	[2]	LAMP-TAIL STOP FLASHER
57-1.	21EK-10180	[1]	LAMP-TAIL STOP FLASHER
57-2.	21EK-20200	[1]	HARNESS-REAR COMBI
57-2.	24L3-10420	[1]	HARNESS-REAR COMBI
57-3.	21EK-10290	[2]	BULB
57-4.	21EK-10270	[1]	BULB(5W)

• We could supply the following spare parts

1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.

2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.

3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.

4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.

5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.

6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.

• Advantage

1. Offer Top quality & competitive products

2. Support 12-month warranty

3. 100% tested before shipping

4. Delivery in time

5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator

6. More than 15 years production and 11 years foreign trade experience

7. Professional QC team

8. Best sales team, 24 hours service

• Packing and Shipping

Packing Details :

inner packing : plastic film for wrapping

external packing : wooden

Shipping :

within 3 days after received the payment , by air or by express or by sea on the basis of the

quantity and emergency circumstances.

1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,

2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.

3. By Sea: Delivery from the Huangpu port .
